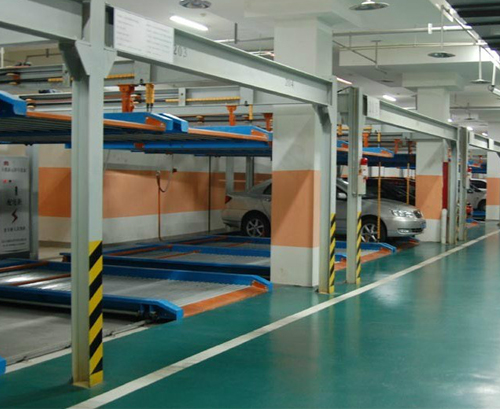

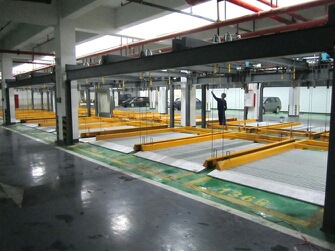

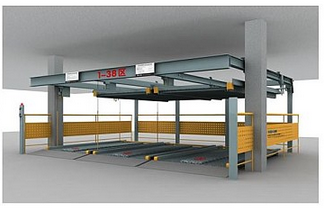

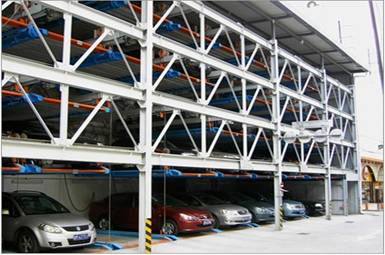

PSH Lifting and shifting automatic car parking and car storage system
1.Advantage and Application
(1)This type of parking equipment has a lot of combinations much adaptable for different sites and with low civil requirements.
(2)You can combine freely according to different space and terrain.
(3)Its maintenance is simple and low-cost.
(4)You can fix it in the open air, basement, on the ground, and underground.
2.Equipment Formation
Each controlling group of this parking system can be designed from 3-car to 10-car and can also be arranged into tandem columns. The best option is within 17 cars per group, and its up to the specific site conditions.
3.Working Principle
The equipment uses chain or wire to lift and utilizing big span design in front or back side, each parking space with a car board, which through lifting up and down and sliding to the ground, the driver goes into the garage, parks or takes a car, finishes the whole procedure.
4.Equipment Type
4-point safety device on the ground and underground; independent car-resistant device, over-length, over-range and over-time detection secure the safety of cars.
No. | Name | Instruction | ||
1 | Layer | Upper layer | Ground layer | |
2 | Vehicle Size | Length | 5000(mm) | 5000(mm) |
Width | 1850(mm) | 1900(mm) | ||
Height | 1550(mm) | 1550(mm) | ||
3 | Vehicle Weight | 1700(kg) | 2000(kg) | |
4 | Lifting | Power | 2.2(kw) | |
Speed | 4(m/min) | |||
5 | Sliding | Power | 0.2(kw) | |
Speed | 8(m/min) | |||
6 | Driven Mode | Motor+Chain | ||
7 | Operation Mode | Button, Automatic, Manual | ||
8 | Power Supply | AC380V/220V50HZ/60HZ | ||
