1 This model is all steel components suitable for use in the basement parking can also be designed to stop the use of outdoor space and erection of canopy, peripherals can be renovated to increase the appearance.

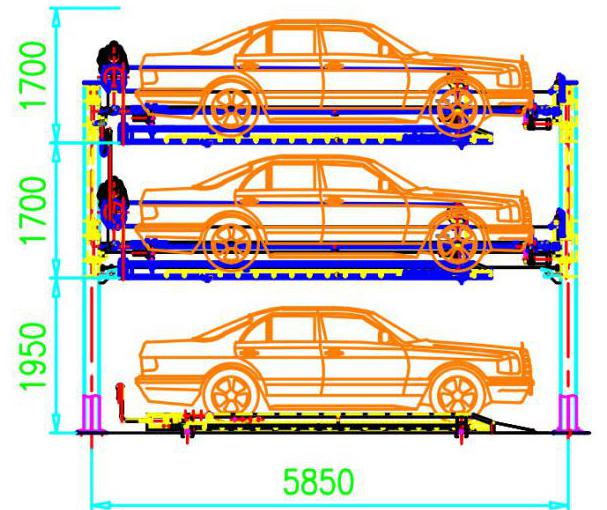

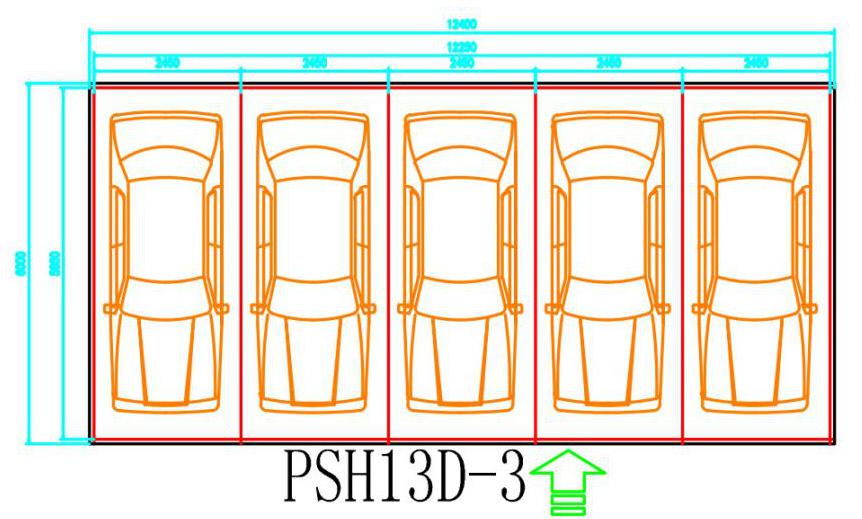

2-level car parking carrier board to do lifting action, when the vehicle is carrying out an empty car plate fell to the ground floor, ground floor car parking carrier board to do just sliding action, but each group must have a sliding space to facilitate the upper decreased use of parking spaces.
Configuration of multiple security detection devices to ensure safe and reliable operation throughout.
4 anti-fall device.
5 people, vehicles straying alarm device.
6 vehicles high, long alarm device.
7 phase undervoltage, overcurrent and overload protection devices.
8 off self-locking protection device.
9 emergency stop button device.
10. Fully automatic PLC control, easy to operate, using buttons, IC card, remote control or control a variety of ways to identify the body.
Name | Spec | Material | |
Frame | Uprights | H150×150 | Q235 |
| crossbeam | H300×150 | Q235 | |
| Stringers | H248×124 | Q235 | |
The second and the third floor vehicle platform | Vehicle platform edge beam | Integrated processing 3.5t cold-pressed steel plate | Q235 |
Wave board | Zinc Plating and billow forming 2.0t galvanized steel sheet | Zinc Plating | |
The first floor vehicle platform | Vehicle platform edge beam | Integrated processing 3.5t cold-pressed steel plate | Q235 |
Wave board | Zinc Plating and billow forming 2.0t galvanized steel sheet | Zinc Plating | |
Traverse motor reducer | 0.2kW | ||
Traverse drive chain | 10A | ||
Lift device | Second and third layer lift motor reducer | 2.2kW | |
Electric chain | 16A-2 | ||
Rope | Φ9.5 | ||
Main drive shaft | Φ55 | 45 | |
Reel | Φ210 | Q235 | |
Guide wheel | Φ210 | 45 | |
Large sprocket | 16A-2 | 45 | |
Motor sprocket | 16A-2 | 45 | |
| Fall-arrest systems | Electromagnet | MQB-25/40 AC220V | |
| Safety hook | Q235 | ||
| Tie Rod | Square Pipe 15X15X1.5 | Q235 | |
