Surface Grinding Machine (Heavy duty) with complete accessories
Surface Grinding Machine (Heavy duty) with complete accessories
Comply / non-comply (please fill-up with your quoted machine spec). | |||
Name of the firm/ Local agent with full address | Mazzak Inter –Trade , 52, New Eskaton Road, TMC Building 6th floor, Dhaka-1000 | Complied | |
Principal Name /Manufactures Name with full address | To be mentioned | Unit G38, 28th Buliding,No.140 Tianlin Road, Xuhui District ,Shanghai,China | |

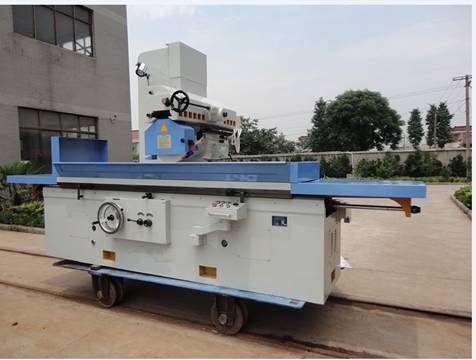

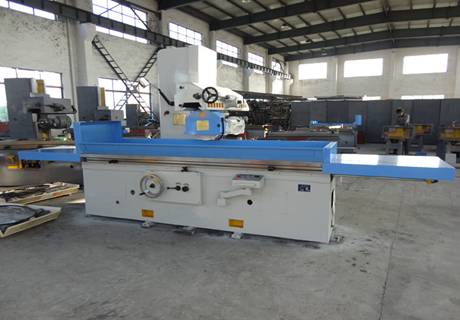

Nomenclature | To be mentioned | Hydraulic Automatic surface grinding machine | |
Make and Model | To be mentioned | Tieju,M7150 | |
Country of Manufacturer | Group A Countries | China(mainland) | |
Country of Assembly | Group A Countries | China(mainland) | |
Year of Manufacturer | Not before 2014 | 2001 | |
Purpose | To make the engine head surface smooth and even | To make the engine head surface smooth and even | |
Specifications | |||
Working Table size (min) | 1500 x 500mm | 1600 x 500mm | |
Maximum working length | 1500mm | 1600mm | |
Maximum width of grinding | 350mm | 500mm | |
The vertical moving distance of grinding head | 60 – 80mm | 800mm | |
The vertical moving distance of spindle box | 750 – 950mm | 800mm | |
Spindle speed | To be mentioned | 1440r/min | |
Transverse moving speed of working table | 40 – 900mm/min. | 5-30m/min | |
Overall dimension (LxWxH) | To be mentioned | 4400 x 1900x2400
| |
Workpiece capacity – length | To be mentioned | 1600mm | |
Warranty | 1 year after receipt | 1 year | |
Manuals | 1 set operation and reapir manual in English language | 1 set operation and repair manual in English language | |
Accessories of M7150(1600*500mm)
Name | specification | number | Remarks | |
1 | Cooling system | 1set | ||
2 | Electromagnetic chuck | 500x800 | Two blocks | |
3 | Wheel chuck | One set | installed in the machine | |
4 | Grinding Wheel | Ф400 x 50 xФ127 | One block | |
5 | machine stand pad | HJ x 81—1 | Five pieces | Installed in the annex |
6 | The balance shaft | Ф32×270 | One piece | Installed in the annex |
7 | balance plate and screw | M6 x 12 | 3sets | One set installed in the machine |
8 | Diamondpen holder | One set | Installed in the annex | |
9 | Iron puller | One piece | Installed in the annex | |
10 | Sleeve nut / handle | M64 x 2 | One set | Installed in the annex |
11 | inner hexagon spanner | 19 | One piece | Installed in the annex |
12 | The foot bolt, nut, Washer | M20 x 400、M20、20 | Six sets | Installed in the annex |
13 | Grinding wheel balancer | One set |
